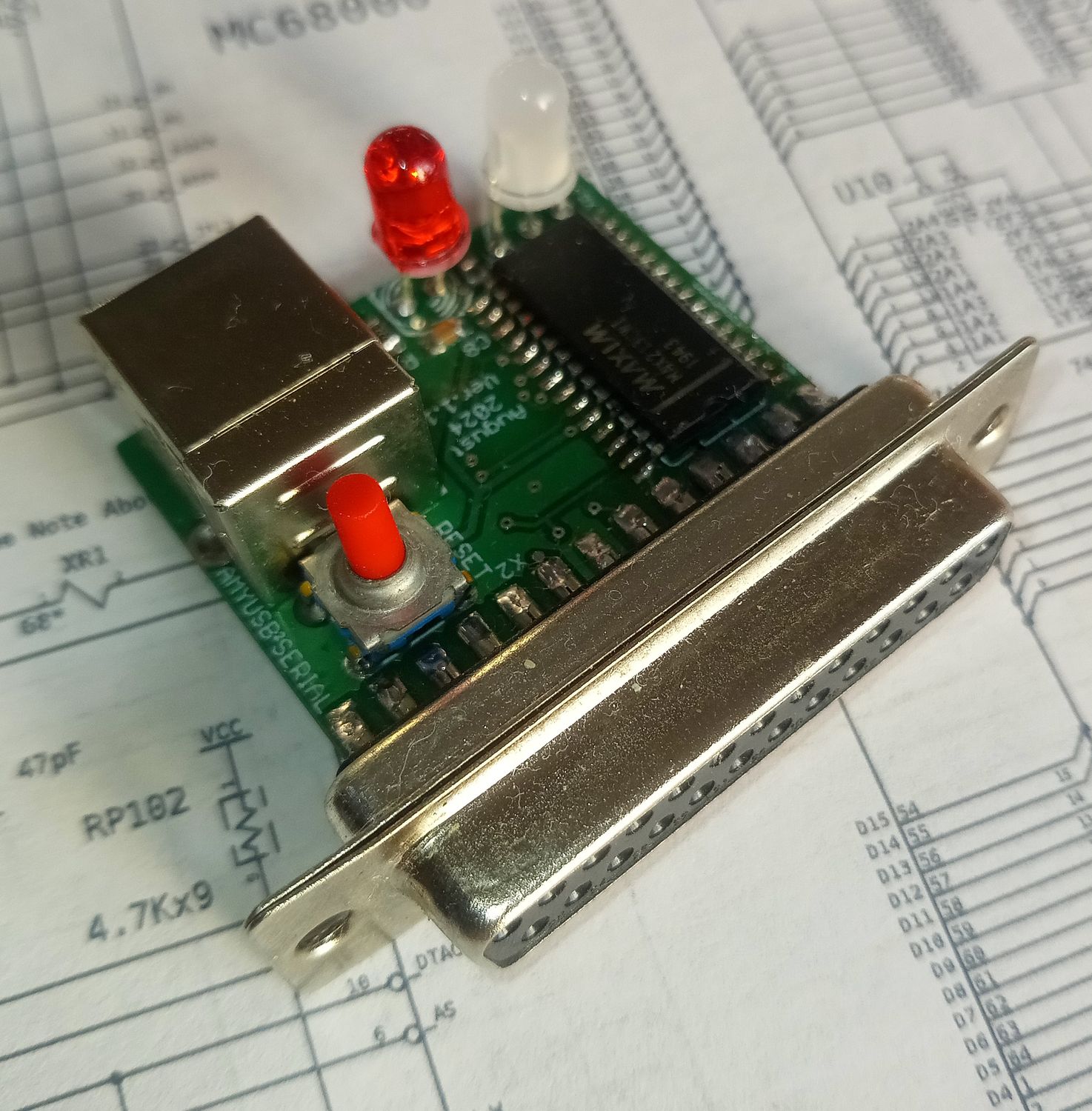

AMYUSB²SERIAL: Amiga USB <> Serial Adapter

Overview

AMYUSB2SERIAL is a versatile and user-friendly interface designed to connect your classic Amiga computer to a modern PC via USB. This adapter facilitates communication between the two systems, allowing you to use your Amiga as a terminal or for data transfer purposes. Whether you're debugging, programming, or simply exploring retro computing, AMYUSB2SERIAL bridges the gap between vintage hardware and contemporary technology.

Key Features

• Dual Operation Modes: The AMYUSB2SERIAL adapter supports both RS232 and TTL (5V) communication protocols.
• Plug-and-Play Design: No additional drivers are required when connecting the AMYUSB2SERIAL to a PC. Simply plug the adapter into a USB port, and it will be recognized as a virtual COM port. This makes it exceptionally easy to set up and use, even for beginners.
• Compact and Reliable: The adapter is compact and built with high-quality components to ensure stable performance. Its small form factor makes it convenient to carry and store, while its robust design ensures longevity.
• Wide Compatibility: Compatible with all Amiga models equipped with a serial port (e.g., Amiga 500, Amiga 600, Amiga 1200, Amiga 2000, Amiga 3000, etc.). Works seamlessly with modern PCs running Windows, macOS, and Linux operating systems.
• Terminal Emulation Support: Once connected, you can use any terminal emulation software (e.g., PuTTY, Tera Term, or CoolTerm) to communicate with your Amiga. This allows you to send commands, transfer files, or monitor system output in real-time.

Technical Specifications

• Interface: USB 2.0 (backward compatible with USB 1.1)
• Supported Protocols: RS232 and TTL (5V)
• Baud Rates: Adjustable from 300 baud to 115200 baud (or higher, depending on configuration)
• Power Supply: Powered via USB (PC side) and Amiga Serial Port (no external power source required)
• Reset Button
• Connector Types:
  • USB Type-B female connector for PC connection (no USB cable is included)
  • DB25 female connector for Amiga RS232 connection
• LED Indicators:
  • USB LED for Power-on status
  • Bicolor LED for TX/RX transmission status

Use Cases

• Debugging and Development: Developers working on Amiga projects can use AMYUSB2SERIAL to debug their code or monitor system logs directly from their PC (e.g., with DiagROM).
• File Transfer: Transfer files between your Amiga and PC without the need for floppy disks or other outdated media. Use terminal software to upload and download files efficiently.
• Amiga Networking: With the right software setup, AMYUSB2SERIAL can be used to connect your Amiga to a network via a PC, enabling internet access or file sharing.
• Retro Computing Enthusiasts: For hobbyists and collectors, this adapter provides a simple way to interact with classic Amiga systems, preserving their functionality in the modern era.

Setup Instructions

Hardware Setup:

1. Connect the AMYUSB2SERIAL adapter to your Amiga's serial port using the DB25 connector.
2. Plug the USB end of the adapter into your PC.

Software Configuration:

1. Install a terminal emulation program on your PC (e.g., PuTTY, Tera Term).
2. Open the program and configure the COM port settings:
   • Baud rate: Match the baud rate configured on your Amiga.
   • Data bits: 8
   • Parity: None
   • Stop bits: 1
   • Flow control: None
3. Establish a connection and start communicating with your Amiga.

Additional Notes

• Driverless Operation: While most modern operating systems recognize the adapter automatically, older systems may require manual installation of generic USB-to-serial drivers.
• Community Support: The AMYUSB2SERIAL has gained popularity among Amiga enthusiasts, and there are numerous online forums and resources available for troubleshooting and tips.

Conclusion

The AMYUSB2SERIAL adapter is an indispensable tool for anyone looking to integrate their Amiga into a modern computing environment. Its ease of use, versatility, and reliability make it a must-have accessory for retro computing enthusiasts, developers, and hobbyists alike. By bridging the gap between classic and contemporary technology, AMYUSB2SERIAL ensures that your Amiga remains a functional and enjoyable part of your digital life.

Final Note

Always ensure proper settings and baud rate configurations to avoid communication errors. If you encounter issues, seek advice from the Amiga community.
