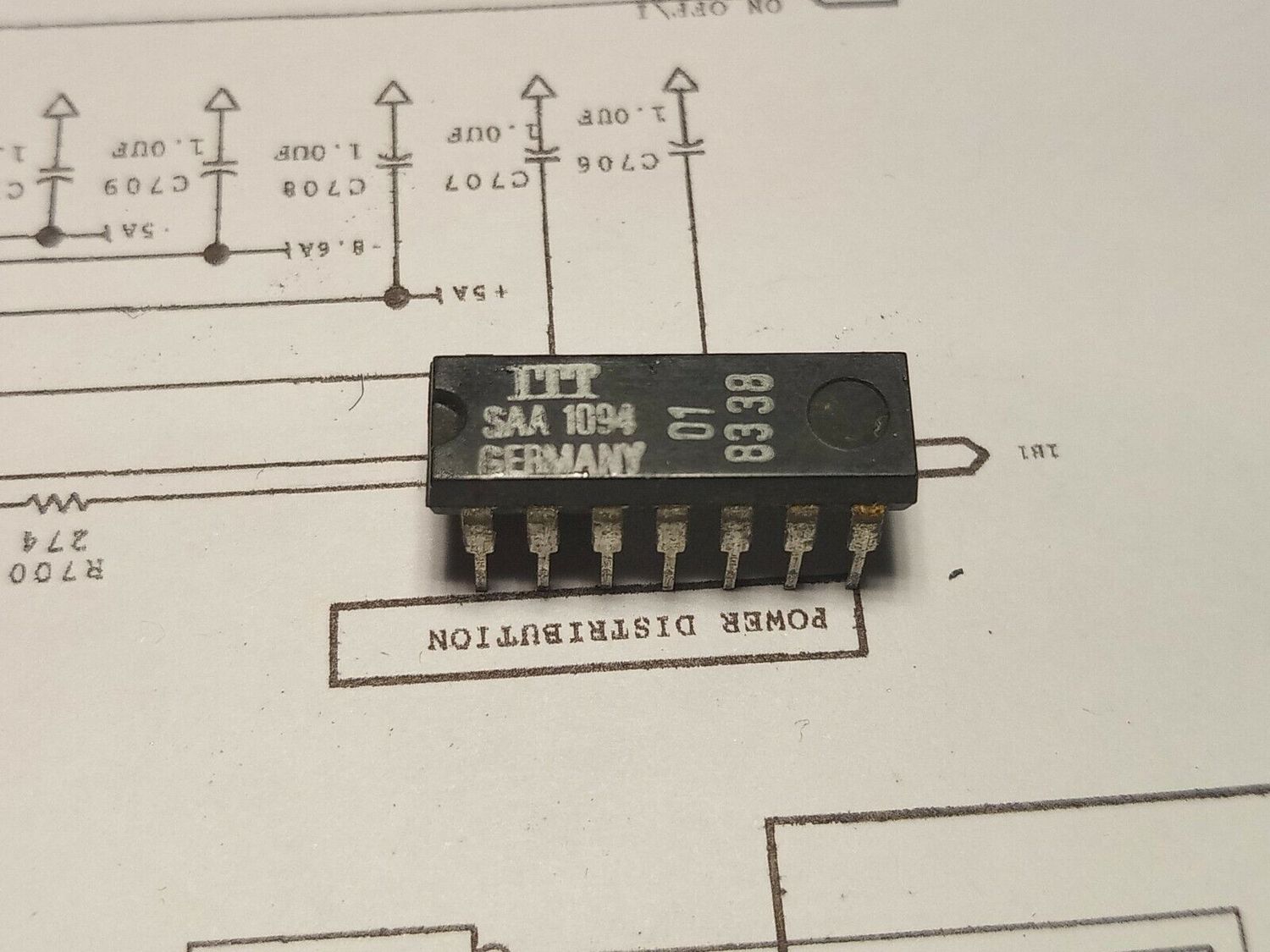

The SAA1094 is a tone ringer integrated circuit (IC) manufactured by Philips Semiconductors, ITT, ST, designed for generating ringing tones in telecommunication devices.
| Pin No. | Name | Description |
|---|---|---|
| 1 | OSC1 | Oscillator input for frequency generation. |
| 2 | OSC2 | Oscillator output. |
| 3 | FREQ1 | Frequency control input for the first tone. |
| 4 | FREQ2 | Frequency control input for the second tone. |
| 5 | ENABLE | Enable/disable control for tone generation. |
| 6 | VSS | Ground pin. |
| 7 | OUT | Output pin for the generated tone signal. |
| 8 | VDD | Positive supply voltage. |
