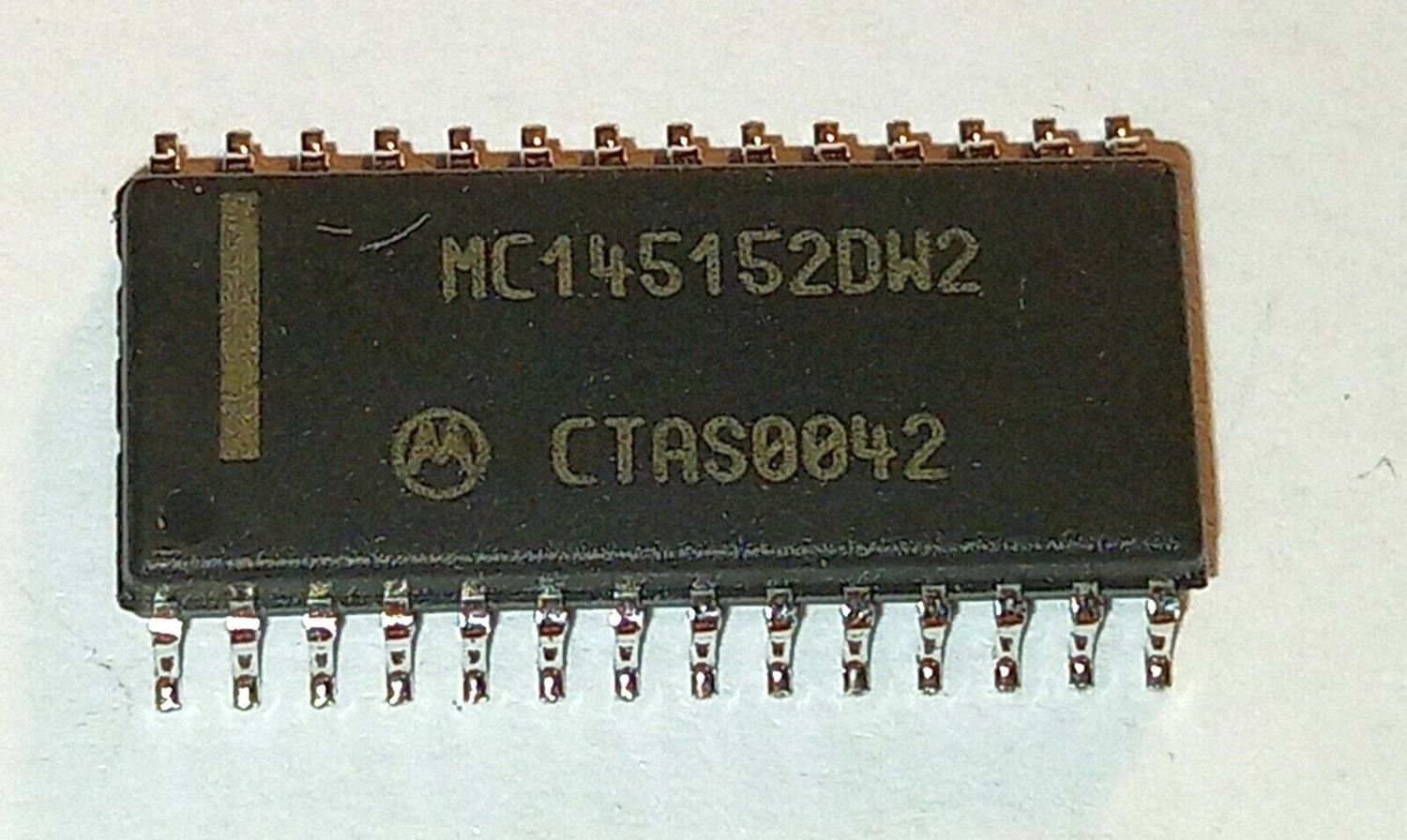

Enhanced Description of the MC145152–2 Frequency Synthesizer

The MC145152–2 is a highly versatile and programmable frequency synthesizer designed for precision and efficiency in communication systems. It features 16 parallel inputs for programming the N and A counters, along with three input lines for configuring the R counter. This device integrates a comprehensive set of features, including a reference oscillator, a selectable reference divider, a two-output phase detector, a 10-bit programmable divide-by-N counter, and a 6-bit programmable divide-by-A counter, ensuring flexibility and accuracy in frequency synthesis applications.

As an improved drop-in replacement for the MC145152–1, the MC145152–2 delivers enhanced performance with reduced power consumption and superior electrostatic discharge (ESD) and latch-up immunity. These improvements make it a reliable choice for modern electronic designs.

Key Features:

• Wide Operating Temperature Range: –40°C to 85°C, ensuring robust performance in demanding environments.
• Low Power Consumption: Achieved through advanced CMOS technology, optimizing energy efficiency.
• Flexible Supply Voltage: Operates seamlessly within a 3.0V to 9.0V supply range.
• Reference Oscillator Flexibility: Supports both on-chip and off-chip reference oscillator operation.
• Lock Detect Signal: Provides a reliable indication of phase-locked loop (PLL) lock status.
• Dual Modulus/Parallel Programming: Offers versatile configuration options for diverse applications.
• 8 User-Selectable ÷R Values: Includes 8, 64, 128, 256, 512, 1024, 1160, and 2048 for customizable frequency division.
• Wide Division Ranges:
  • ÷N Range: 3 to 1023
  • ÷A Range: 0 to 63

The MC145152–2 is ideal for applications requiring precise frequency control, such as wireless communication systems, RF modules, and test equipment. Its combination of advanced features, low power consumption, and improved reliability ensures superior performance in a compact, user-friendly design.
