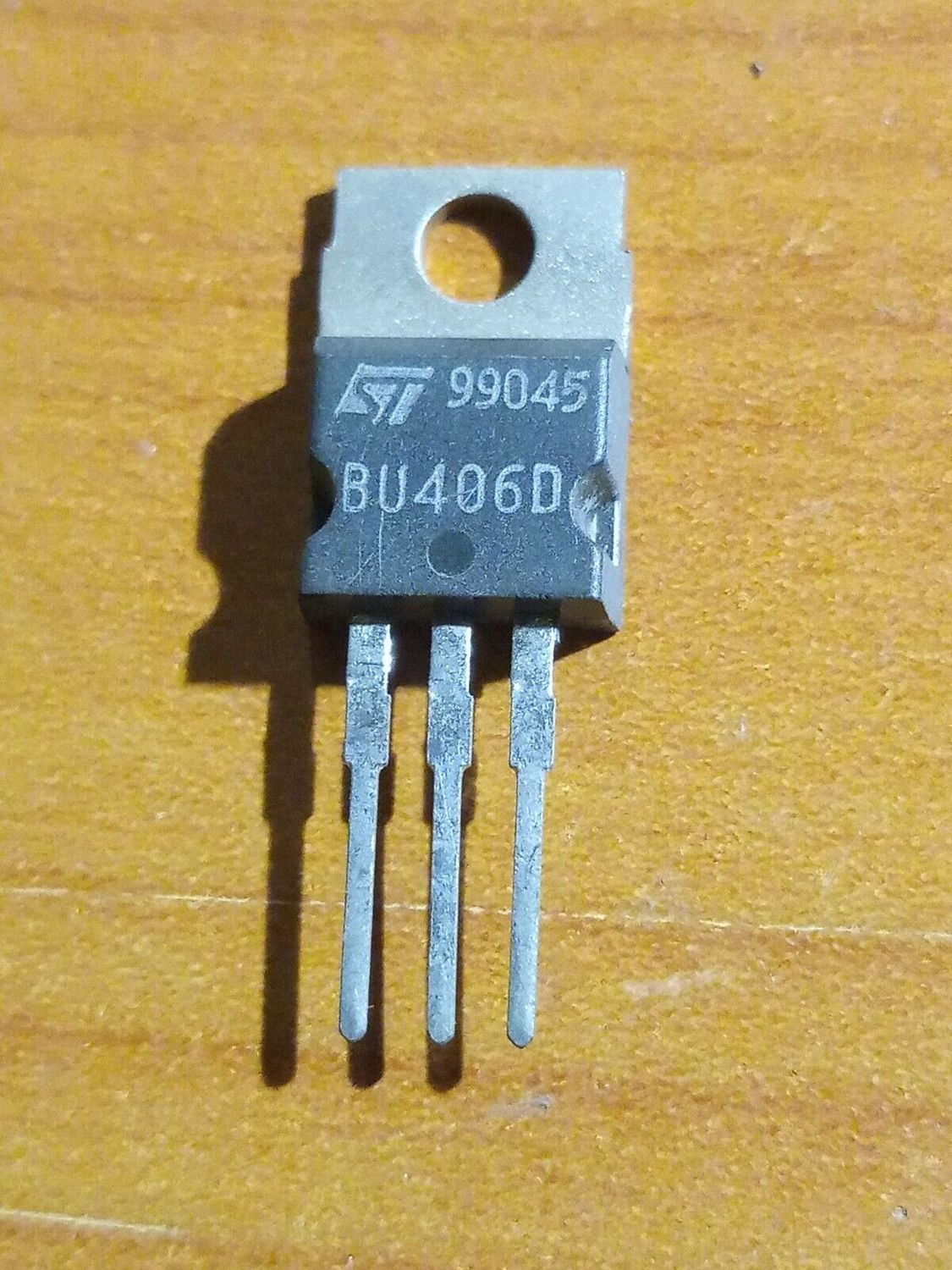

BU406D NPN Epitaxial Switching Silicon Transistor - 60W, 10A, 200V, TOP-66 Case

The BU406D is a high-performance NPN epitaxial silicon transistor designed for switching applications. With its robust specifications and durable TOP-66 case, this transistor is ideal for use in power amplifiers, motor drivers, and other high-power circuits.

Key Features:

• Collector-Emitter Voltage (Vceo): 200V (Ib = 0)
• Collector-Emitter Voltage (Vcev): 400V
• Collector-Base Voltage (Vcbo): 400V
• Emitter-Base Voltage (Vebo): 6V
• Collector Current (Ic): 7A continuous, 15A peak
• Base Current (Ib): 4A
• Total Power Dissipation (Pt): 60W
• Package Type: TOP-66 Case for enhanced heat dissipation

Applications:

The BU406D transistor is widely used in various high-power and switching applications, including:

• Power amplifiers and audio equipment
• Motor control and driver circuits
• Switching power supplies
• Automotive electronics
• Industrial automation systems

Why Choose the BU406D?

• High Voltage and Current Ratings: Capable of handling up to 200V and 7A continuous current, making it suitable for demanding applications.
• Durable Construction: The TOP-66 case ensures excellent heat dissipation and long-term reliability.
• Versatility: Ideal for both switching and amplification purposes in a variety of electronic designs.
• Wide Operating Range: Designed to perform reliably across a broad range of voltages and currents.

Note: Ensure proper heat sinking when operating near maximum power dissipation limits. Always follow recommended circuit design guidelines for optimal performance and safety.

Whether you're building a high-power amplifier, designing a motor driver, or working on industrial electronics, the BU406D NPN Transistor offers the performance and reliability you need for your project.
