Amiga 2000 3000 4000 Edge Connectors

Product Details

Brand: Various/Unknown

Weight: 0.30 kg

Edge Connectors for Amiga 2000/3000/4000

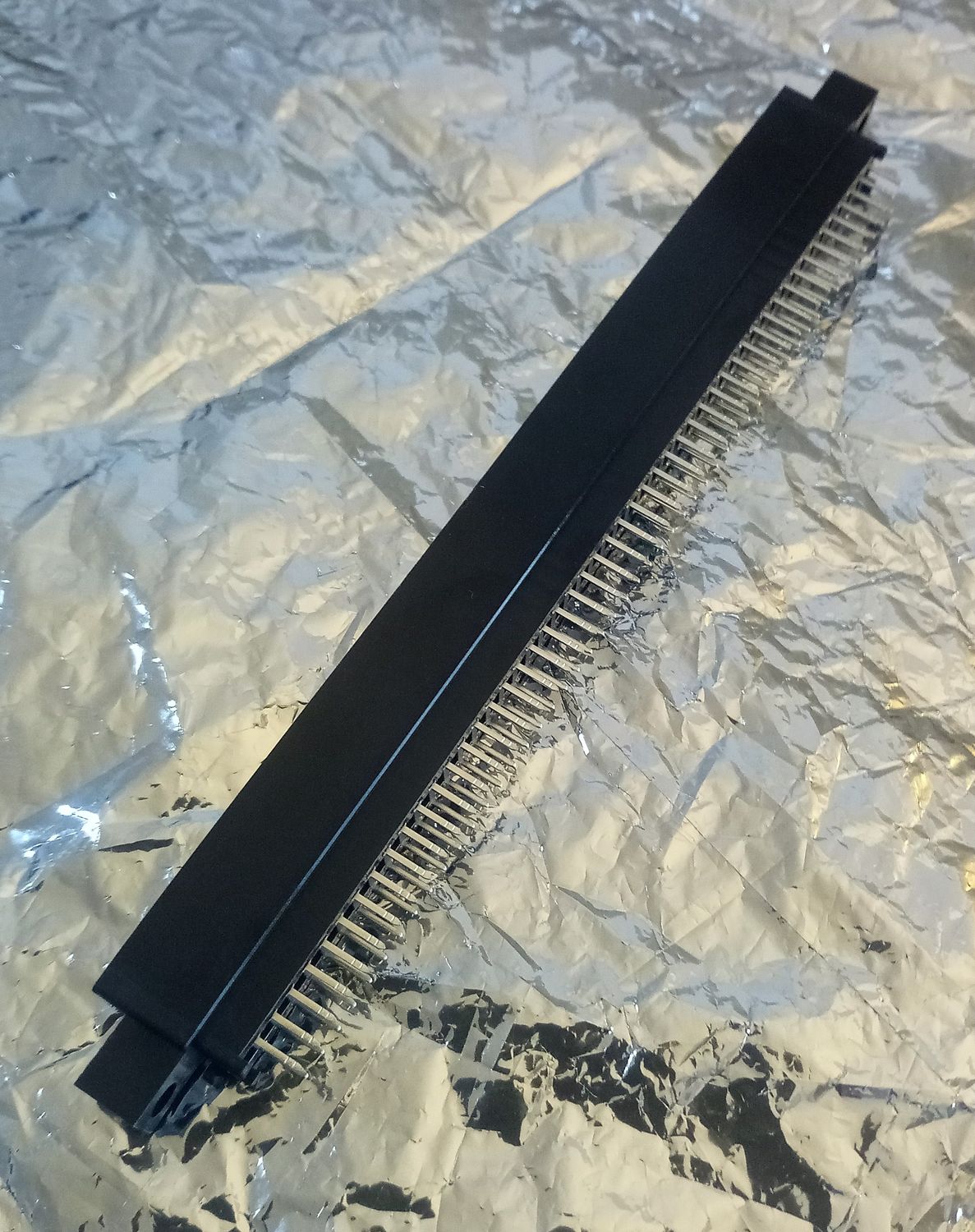

The image depicts an edge connector with a pitch of 2.54 mm, commonly used in Amiga computers such as the Amiga 2000, Amiga 3000, and Amiga 4000. These connectors are crucial for connecting expansion boards to the system bus.

Specifically the 86-Pin PCB Edge Connector is Dual-Sided. This high-quality edge connector features a 2x43 pin configuration with a standard 0.1-inch (2.54mm) pitch, making it perfectly suited for the CPU slot on an Amiga 2000.

With minor modifications, such as adjusting the card width and removing a couple of contacts, it can also be adapted for use with the Interak ISBUS system, offering versatility for various retro computing projects.

The 100-Pin version is suitable for A2000 A3000 A4000 Zorro II boards.

Main Characteristics:

Dimensions and Shape: The object is long and rectangular, featuring a series of regularly spaced holes arranged in horizontal rows.
Pitch: The holes have a spacing of 2.54 mm, which is the standard pitch for many electronic applications.
Materials: The connector is made of a rigid material, likely reinforced plastic, with a smooth, reflective surface.
Function: It is designed to accommodate the pins of an expansion board, enabling physical and electrical connection between the board and the system bus.
