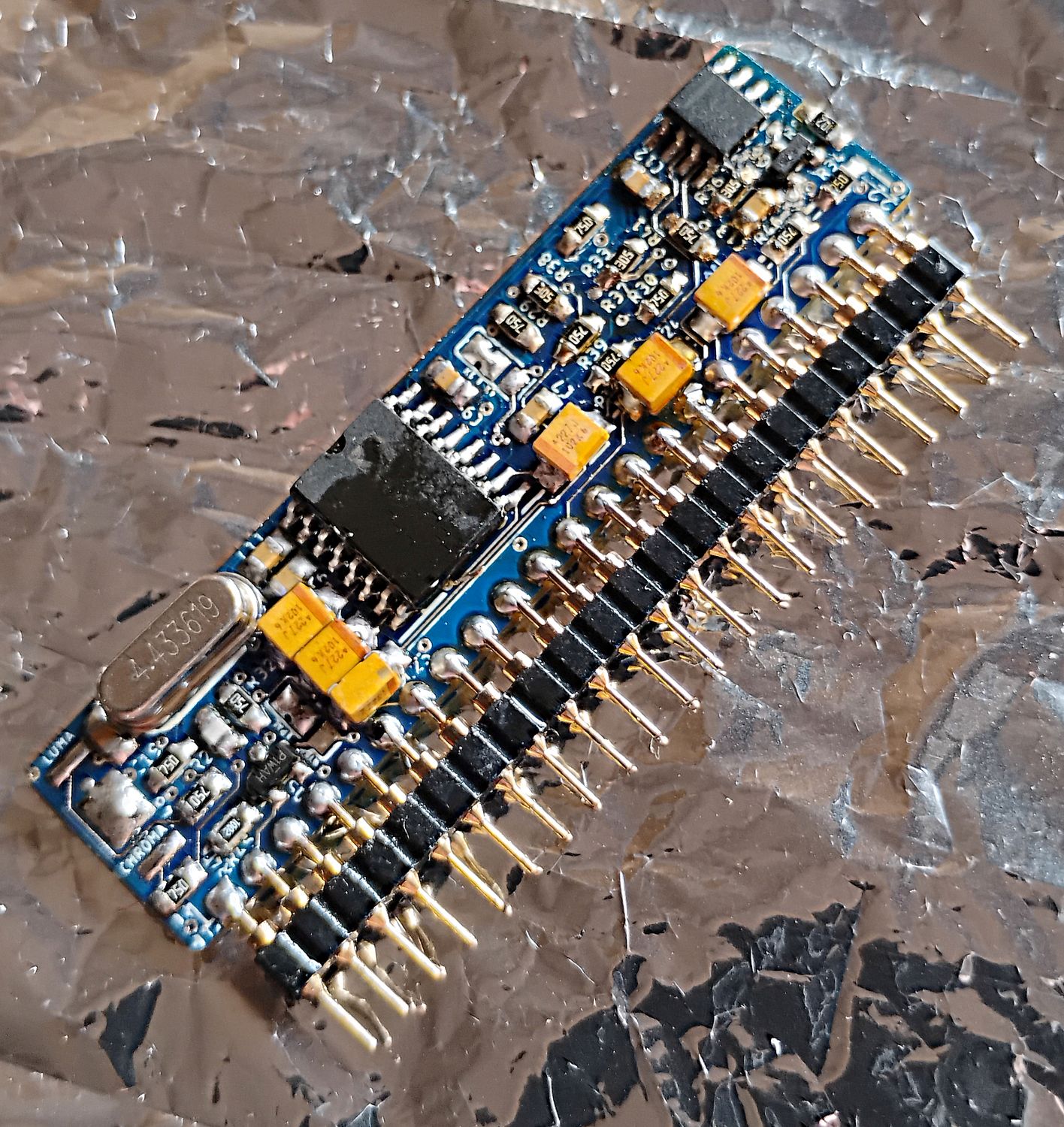

Name: AMYVIDHYBRID+FBAS - A Modern Replacement for Commodore 390229-03 Amiga Video Hybrid RGB DAC & PAL NTSC Converter
Brand: ARKY
SKU: AMYVIDHYBRID+FBAS
Price: 47.9 EUR
Availability: InStock

Hi, my name is Myga.
In our Amiga store, you'll find classic and modern Amiga hardware and software—virtually everything currently available on the market, both new and used. Our extensive range of classic Amiga hardware includes everything from the traditional mouse to RAM expansions, as well as a wide selection of spare parts, everything an Amiga enthusiast needs to keep their trusty vintage machine in tip-top condition. We also stock a curated selection of magazines and books dedicated to Amiga, Commodore, and the world of retrocomputing. Discover quality electronics, PC hardware, accessories, and components for Amiga, all carefully selected to offer high performance and excellent value. We're committed to offering fair prices, easy access, and reliable support. Have a question? Our team of experts is here to help.

AMYVIDHYBRID+FBAS - A Modern Replacement for Commodore 390229-03 Amiga Video Hybrid RGB DAC & PAL NTSC Converter

SKU AMYVIDHYBRID+FBAS

47.90€

NEW!

Standard

Please choose

A versatile 4-bit DAC RGB Video FBAS Y/C Module for Amiga and Beyond

Estimated delivery time

Shipping: 8–22 days

In stock: 3 available

Quantity:

Save this product for later

AMYVIDHYBRID+FBAS - A Modern Replacement for Commodore 390229-03 Amiga Video Hybrid RGB DAC & PAL NTSC Converter

Product Details

Brand: ARKY

Colour: Black

Weight: 0.09 kg

AMYVIDHYBRID+FBAS: Adding Color Composite Video to Classic Amigas

The AMYVIDHYBRID+FBAS is a modern hardware project designed to enhance classic Commodore Amiga computers by addressing a key limitation of their original design: the lack of color composite video outputs. While the legendary Commodore 390229-03 Video Hybrid (also known as the VIDIOT) was essential for analog RGB output, it did not provide proper color composite or Y/C (S-Video) signals. The AMYVIDHYBRID+FBAS solves this issue, enabling Amiga enthusiasts to enjoy vibrant composite video and Y/C outputs on modern displays.

The Original Limitation: No Color Composite Output

Many classic Amiga models, such as the A500, A500+, A1000, A1500, A2000, and A3000, relied on the Commodore 390229-03 Video Hybrid for video output. However, these systems were limited to analog RGB signals and basic composite sync outputs. They lacked proper color-encoded composite video (FBAS) and Y/C (S-Video) outputs, which are essential for connecting to many TVs and monitors.

This limitation meant that users could not take full advantage of the Amiga's advanced graphics capabilities when connecting to composite or S-Video inputs. The AMYVIDHYBRID+FBAS fills this gap by adding proper color composite and Y/C outputs, ensuring compatibility with a wider range of displays.

How Does AMYVIDHYBRID+FBAS Work?

The AMYVIDHYBRID+FBAS builds on the functionality of the original Commodore 390229-03 Video Hybrid while introducing new features:

Color Composite Video (FBAS): Adds proper color-encoded composite video output, allowing connection to devices that support this standard.
Y/C (S-Video) Output: Provides a high-quality Y/C signal for sharper video on compatible displays.
RGB Channels: Retains the original hybrid's ability to convert 4-bit digital RGB signals into analog RGB output, amplified and terminated at 75 ohms.
Synchronization Signal: Ensures proper sync for all video outputs, maintaining compatibility with original Amiga hardware.

Why Does This Matter?

For retro computing enthusiasts, the lack of color composite and Y/C outputs has been a long-standing limitation of classic Amigas. The AMYVIDHYBRID+FBAS addresses this issue by:

Enhancing Compatibility: Enables Amigas to connect to a wider range of modern and vintage displays.
Preserving Legacy: Ensures that these iconic machines can continue to be enjoyed with their full graphical potential.
Modernizing Design: Uses standardized, readily available components to avoid the scarcity issues associated with the original hybrid.

Technical Specifications

The AMYVIDHYBRID+FBAS is designed for seamless integration into classic Amiga systems:

Compact Design: Smaller and easier to install than the original hybrid (need desoldering).
Based on Revision 3.2: Ensures optimal performance and compatibility with all relevant Amiga models.
Versatile Use: Can also be used for other 4-bit DAC RGB video projects (max +5V supply voltage).

Dimensions:
Thickness: 4 mm
Width: 57 mm
Height: 15 mm (PCB), 27 mm (including 22-pin header)

Warning: Pin 1 is identified by a square pad and the number "1" on the PCB. Reverse insertion could cause damage!
